ISO13918 SD Shear Stud Connectors

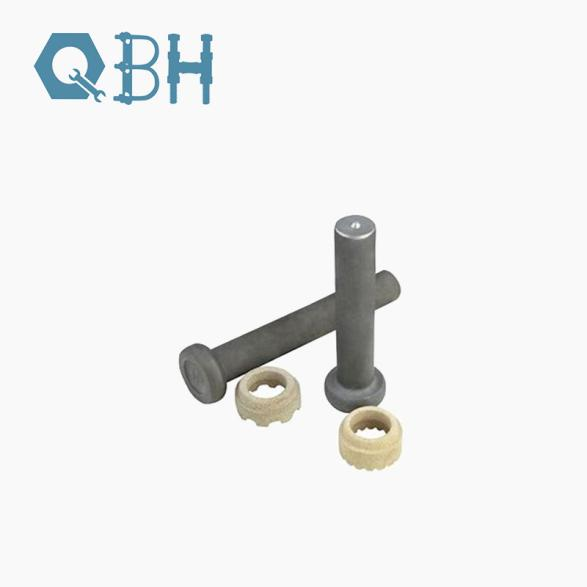

ISO13918 SD Shear Stud Connectors are designed to tie the concrete slab with the steel beams and steel deck. This weld studs shear connectors can resist shear forces and increase shear loading capacity in steel buildings. ISO13918 SD Shear Stud Connectors Mainly applied for through steel deck stud welding in composite construction project. All Shear Studs are supplied with ceramic ferrules (ceramic ring). The Ceramic ferrules are made of cordierite and able to withstand heat shock as well as high temperatures without melting or breaking
Send Inquiry
Product Description
ISO13918 SD Shear Stud Connectors are fasteners with high strength stiffness connection. The shear studs are abbreviated as the cylindrical studs (Cheese head studs for arc stud welding). The specifications of ISO13918 SD Shear Stud Connectors are nominal diameter Ф10 ~ Ф25mm, The total length of the welding before the 40 ~ 300 mm. The nail has the top of the head with the glyphs to make the manufacturer's identification mark, the use of welding nail is very wide. ISO13918 SD Shear Stud Connectors are designed to tie the concrete slab to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.
Product Introduction
| Place of Origin | CHINA |
| Standard | ISO13918 SD Shear Stud Connectors |
| HS CODE | 7318159001 |
| Brand Name | QBH |
| Certification | ISO13918 |
| Material | 35K, 40Cr, 35CrMo, SCM435, etc. |
| Size | M3-M64 |
| Production Process | Cold forging≤300mm, Hot forging≤1000mm |
| Class | 4.8/ 6.8/ 8.8/ 10.9/ 12.9 |
| Delivery Time | Within 30 Days |
